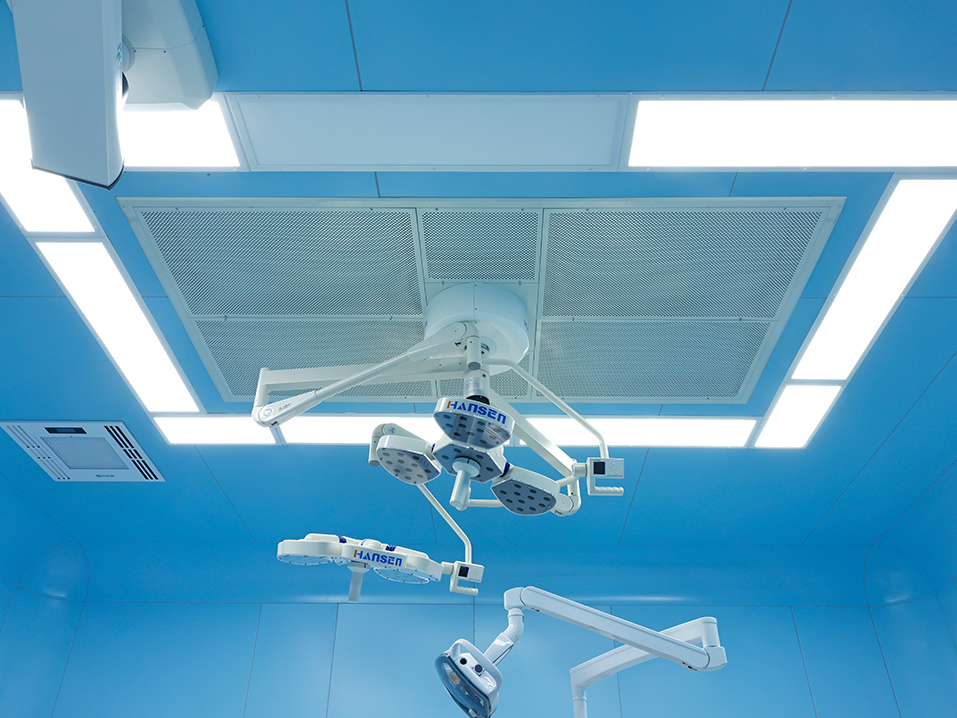

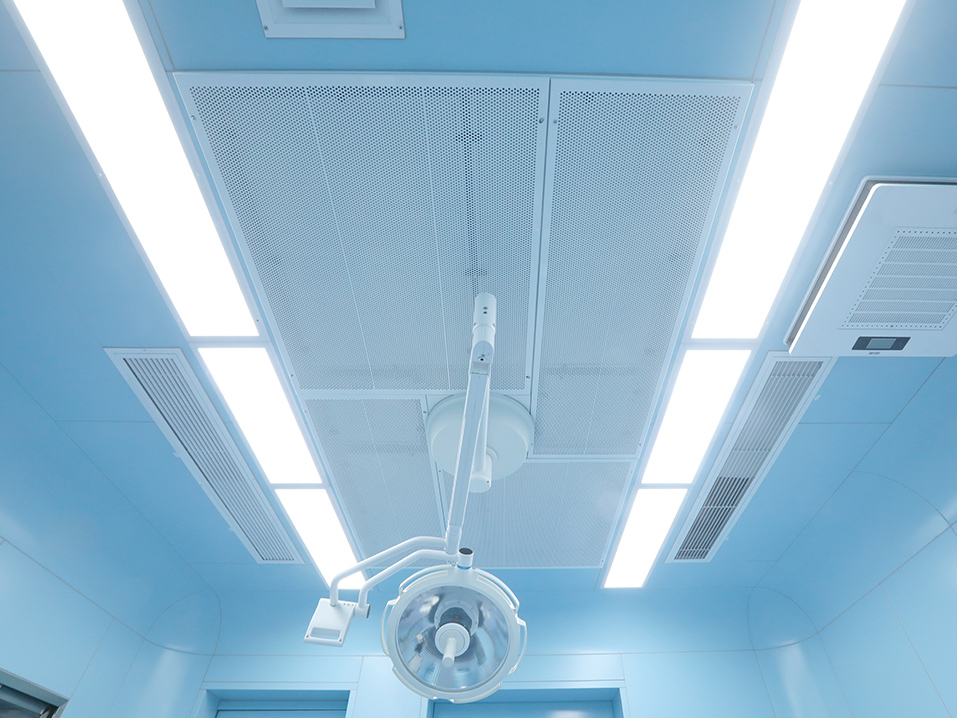

Class 100 Operating Room Laminar Flow Air Supply Ceiling System

Product Name:Laminar Flow Ceiling

Main Material:Frame: SUS304 stainless steel / powder coated galvanized steel; Diffuser plate: stainless steel punching plate

Matching Filter:H13 / H14 HEPA high efficiency filter, 0.3μm filtration efficiency ≥99.99%

Airflow Performance:Vertical unidirectional laminar flow, uniform air outlet wind speed, stable Class 5 (Class 100) cleanliness

Diffuser Structure:Integrated punching stainless steel diffuser plate, uniform air diffusion, no turbulent flow dead zone

Installation Mode:Ceiling embedded installation, perfectly matched with cleanroom ceiling panels, easy modular assembly

Optional Functional Modules:Differential pressure monitoring alarm, UV sterilization lamp, constant wind speed control, VHP disinfection compatible structure

Control System:Optional PLC intelligent control, real-time filter blockage reminder, adjustable fan air volume

Customizable Options:Overall outer size, air output area, frame material, filter grade, additional monitoring modules, single/double side air outlet

Application Scope:Pharmaceutical GMP sterile workshop, biological safety laboratory, operating room, microelectronic dust-free workshop, precision instrument constant temperature clean room, high-containment weighing room

Share to

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Talk to us now!

Description

Cleanroom Air Supply Ceiling

High-standard cleanroom air supply ceiling for laminar flow clean areas, integrated HEPA filter & uniform air outlet design, stable vertical laminar airflow, high air tightness and dust-free structure. Ideal for pharmaceutical cleanrooms, hospital operating rooms, laboratory & electronic ultra-clean workshops, custom size available.

Product Overview

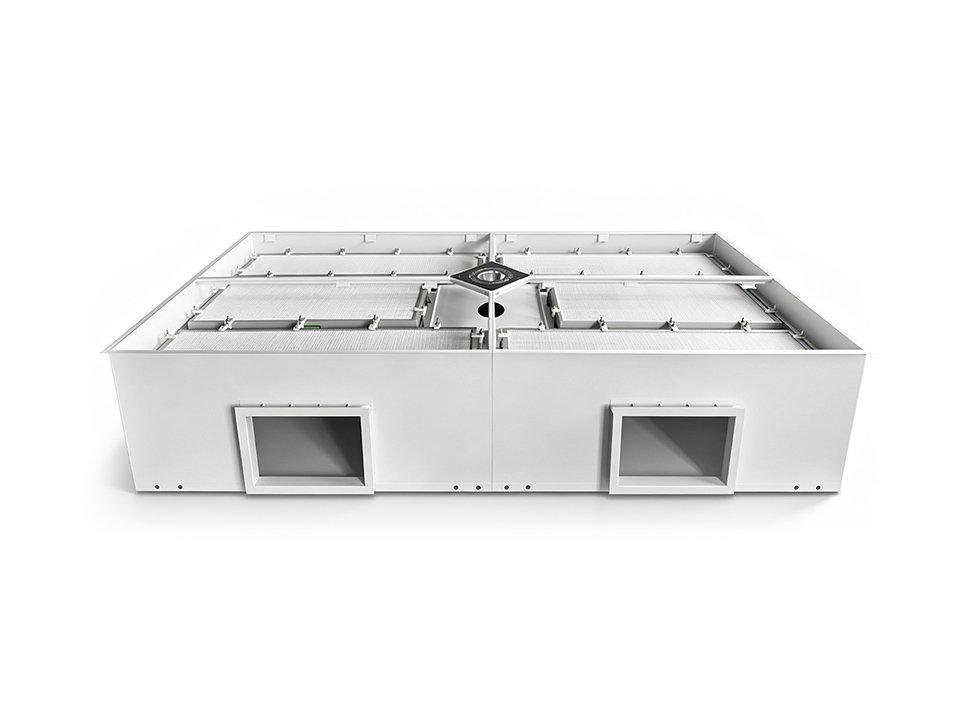

Our cleanroom air supply ceiling is a professional integrated laminar flow air supply terminal device, specially designed for Class 100 / Class 1000 ultra-high cleanliness purification areas. Different from conventional FFU decentralized air supply, this integral air supply ceiling adopts overall modular splicing structure, equipped with built-in high-efficiency filters and uniform flow diffuser system.

The whole ceiling features seamless splicing, excellent air tightness and no air leakage. It can form continuous and stable vertical laminar airflow downwards, effectively suppress indoor dust particle floating and ensure uniform cleanliness in the whole room. The shell adopts anti-corrosion and easy-to-clean structure, resistant to long-term VHP fumigation and chemical disinfection wiping, fully complying with GMP purification standards.

Widely used in pharmaceutical sterile production areas, hospital laminar flow operating rooms, biological safety laboratories, semiconductor ultra-clean workshops and other high-standard clean environments.

Key Advantages

1. Integrated Modular Seamless Splicing Design
The whole set adopts modular combined assembly, seamless splicing between modules, effectively avoid air leakage, maintain stable indoor laminar flow environment, no dead angle of air supply.

2. Built-in H13/H14 High Efficiency Filtration System
Integrated high-efficiency filter module, the filtration efficiency for 0.3μm particles reaches 99.99%, which can thoroughly intercept dust, bacteria and microorganisms, meet the ultra-high cleanliness standard of Class 100 clean area.

3. Uniform Vertical Laminar Air Outlet
Overall uniform flow diffuser surface evenly disperses airflow, forms stable vertical down laminar flow, quickly discharges indoor pollutants downward, and the cleanliness of each position in the room is consistent.

4. High Airtight Anti-Pollution Structure
The shell is made of thickened anti-rust plate with seamless welding process, no gap to hide dust and bacteria, resistant to long-term high-frequency disinfection without peeling and rusting.

5. Convenient Filter Maintenance Structure
Reserved maintenance operation port on the side of the ceiling, operators can replace the internal HEPA filter from the upper interlayer without entering the clean production area, reduce the risk of secondary pollution.

6. Fully Customized For Different Purification Projects
Support customizing the overall size, air supply area, filter grade and installation mode according to the actual space size and cleanliness requirements of the customer's cleanroom.

Application Scenarios

Pharmaceutical GMP sterile clean production workshop & isolation buffer room
Hospital laminar flow operating room, sterile dressing room and sterile supply department
Biological safety laboratory, microbial culture room, vaccine testing laboratory
Semiconductor chip, precision electronic ultra-clean production workshop
Precision optical instrument, aerospace component constant temperature clean room

Matching Supporting Products

Our air supply ceiling can form a complete closed air circulation purification system with FFU fan filter units, high efficiency air supply outlet 4-piece set, aluminum return air louver and constant temperature & humidity air handling unit. We provide one-stop cleanroom EPC turnkey service including scheme drawing design, customized production, delivery and on-site installation & commissioning guidance.
