Stainless Steel Air Shower Room

Product Name:Air Shower Room

Main Cabinet Material:Standard 304 stainless steel plate, optional galvanized steel with powder coating

Product Types:Single person air shower, multi-person channel air shower, cargo air shower, corner air shower, customized special model

Core Purification System:High-speed centrifugal fan + primary filter + H14 HEPA filter, high-pressure laminar air jet

Control System:Intelligent PLC automatic control, automatic air shower timing, voice prompt

Safety Interlock Function:Double door electronic interlock, two doors cannot be opened simultaneously

Customizable Options:External overall size, internal channel width, air shower time, door type, additional disinfection module

Share to

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Talk to us now!

Description

Air Shower Room

304 stainless steel air shower room, electronic double door interlock, high-pressure clean air to blow away dust and microbes, single person /multi-person/cargo air shower optional. Avoid air cross leakage, stabilize clean room pressure difference, custom size & function modules, suitable for pharmaceutical, semiconductor, medical, food and laboratory clean projects.

Product Overview

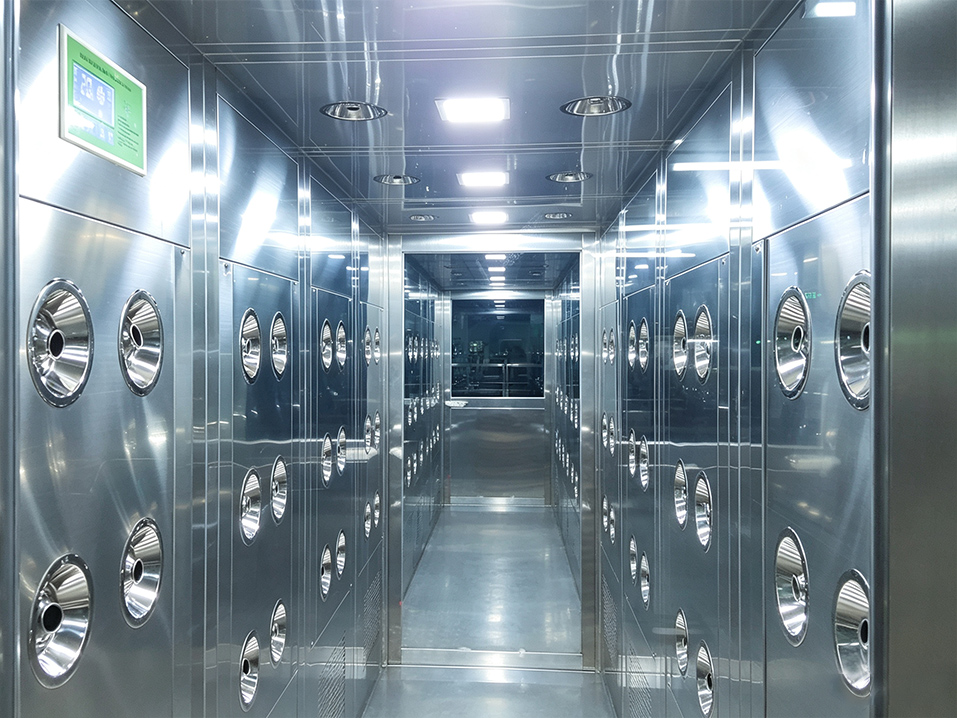

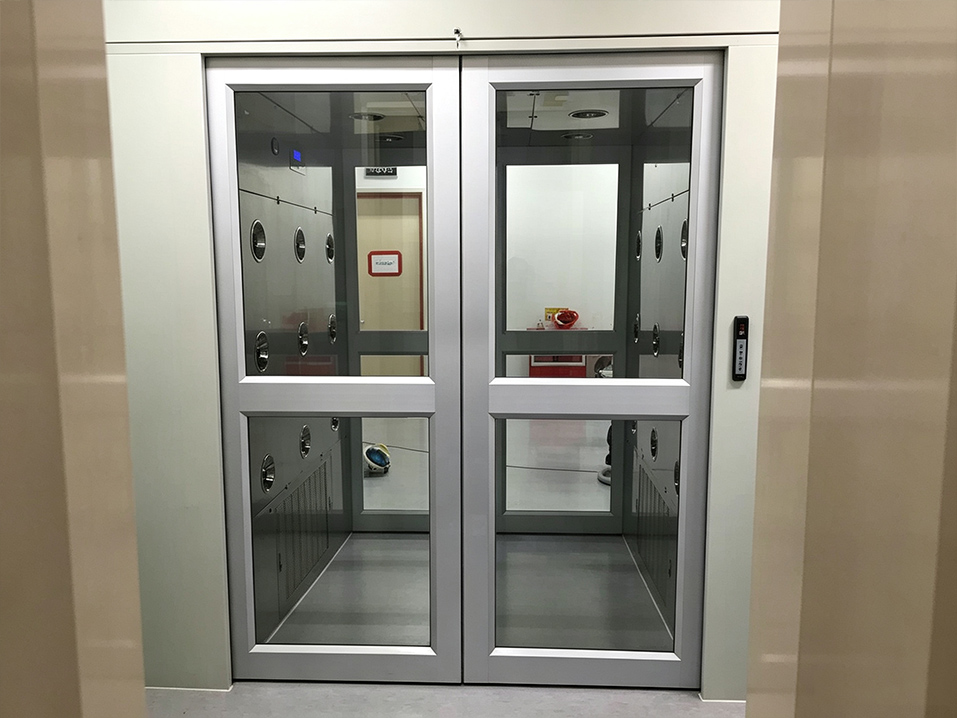

Our air shower room is installed at the partition between clean area and non-clean area, which is an essential purification air lock for personnel and materials entering dust-free workshops.

High-pressure clean air flow blows off dust and microorganisms on the surface of clothes and materials in all directions. Equipped with electronic interlock for double doors, it completely blocks air circulation between inside and outside, stabilizes the pressure difference of the workshop, and reduces cross-contamination from the source.

We supply a full range of models including single-person air shower, multi-person channel air shower, cargo air shower, corner air shower and customized versions. The whole cabinet is made of standard 304 stainless steel, all dimensions and functional modules support non-standard customization, widely matched with various clean engineering projects such as pharmaceutical, semiconductor, medical treatment, food and laboratories.

Key Advantages

1. All-Round High-Pressure Dust Removal Purification
360° adjustable stainless steel air nozzles cooperate with high-pressure laminar airflow, thoroughly blow away dust, hair and microbial pollutants on the surface of human body and turnover materials, effectively reduce the particle concentration entering clean area.

2. Double Door Electronic Interlock Prevent Air Cross Contamination
The interlock system strictly restricts the simultaneous opening of internal and external doors, effectively isolate the polluted air outside the clean room, stabilize indoor positive pressure environment, and cut off the transmission channel of cross contamination.

3. Multiple Models For Personnel & Material Transportation

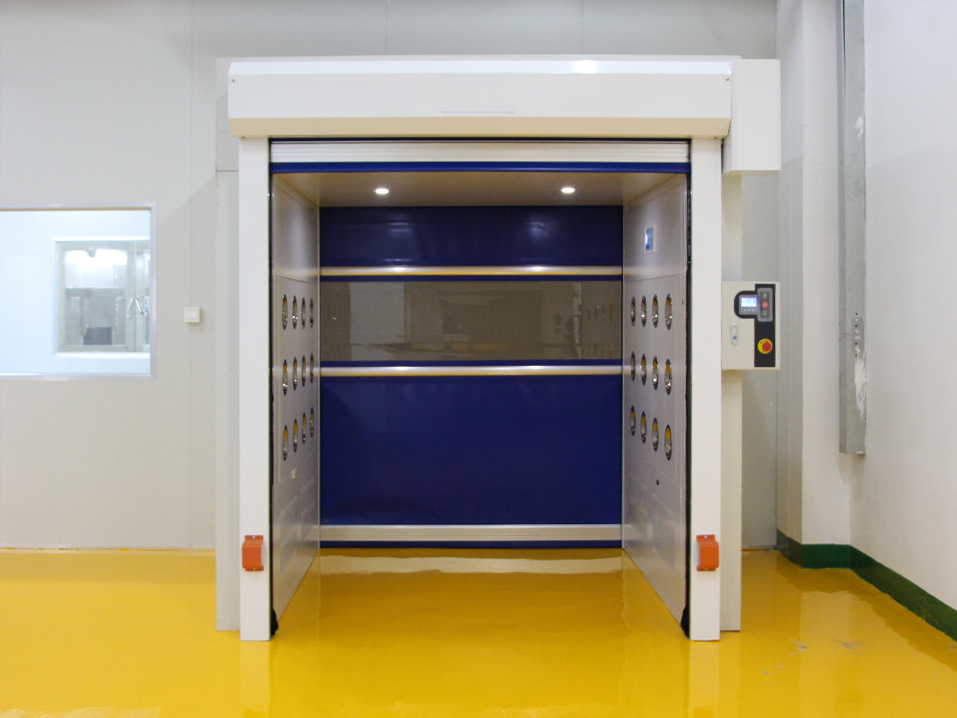

Single-person small air shower for individual laboratory access; long multi-person channel for mass staff passage; large cargo air shower for trolleys and production equipment turnover, covering all purification passage demands.

4. Premium 304 Stainless Steel Cabinet, Anti-Corrosion & Easy Sanitization
Integrated stainless steel cabinet without dust hiding dead corners, resistant to repeated alcohol and hydrogen peroxide wiping, suitable for high humidity and food washing purification environments.

5. Intelligent Automatic Control, Easy Operation
Built-in automatic timing air shower program, automatic start when people enter, voice broadcast reminder optional, reduce manual operation steps and improve workshop passing efficiency.

6. Full Customization For Special Engineering Layout
Support customized size, channel length, door structure and additional disinfection modules according to the actual site layout of clean projects, perfectly match all types of clean wall panels and air circulation systems.

Application Scenarios

Pharmaceutical GMP sterile production workshop personnel & material passage
Semiconductor, chip microelectronic ultra-clean dust-free factory
Hospital operating room, laboratory, medical sterile purification area
Food & beverage processing purification workshop, food raw material warehouse
Biological safety laboratory, microbial testing clean room
Precision optical instrument, aerospace component constant temperature clean workshop

Matching Supporting Products

Our air shower room can form a complete closed purification air circulation system with clean wall panels, cleanroom doors, FFU fan filter units, high efficiency air supply outlets, aluminum return air louvers and clean observation windows. We provide full cleanroom EPC turnkey service including scheme design, customized production, delivery and on-site installation & commissioning guidance.
