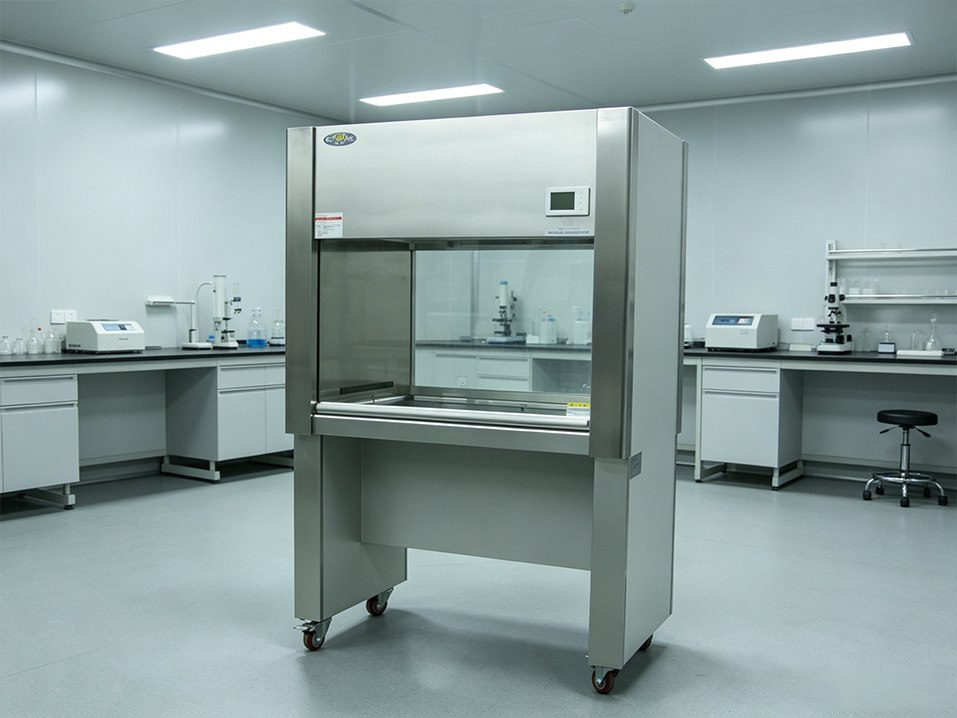

Vertical Laminar Flow Clean Bench

Product Name:Laminar Flow Clean Bench

Cleanliness Grade:ISO Class 5 / Class 100 laminar flow environment

Airflow Type:Vertical laminar flow / Horizontal laminar flow

Operation Size:Single person single side / Double person single side / Double person double side

Worktop Material:Standard 304 stainless steel, optional 316L anti-corrosion stainless steel

Filtration System:G4 primary filter + H14 HEPA high efficiency filter, 99.99% efficiency for 0.3μm particles

Standard Intelligent Functions:UV sterilization interlock, variable frequency fan speed control, filter differential pressure early warning, liftable glass viewing window

Fan Performance:Silent centrifugal fan, stable low noise long-time operation

Base Frame Design:Mobile stand with wear-resistant casters, free position movement

Customizable Options:Overall outer size, workbench length, airflow mode, stainless steel grade, additional functional modules

Application Scope:Cell culture laboratory, microbial testing lab, pharmaceutical sample preparation room, chip & precision electronic assembly workshop, optical component production area

Share to

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Talk to us now!

Description

Laminar Flow Clean Bench

ISO Class 5 laminar flow clean bench, vertical /horizontal airflow optional, single & double person sizes, 304 / 316 stainless steel worktop, G4+H14 double filtration, UV sterilization interlock, low noise variable frequency fan. For laboratory, pharmaceutical, electronics clean workshop, custom size & function available.

Product Overview

Our laminar flow clean bench relies on unidirectional laminar clean airflow to form ISO Class 5 (Class 100) ultra-clean environment inside the operation area, isolating external dust and microbial contamination to protect test samples from interference.

Two mainstream airflow types are available: vertical laminar flow and horizontal laminar flow, with complete single-person and double-person specifications. The standard worktop is made of 304 stainless steel, and 316L anti-corrosion stainless steel is optional for special corrosive environments. All sizes and functional configurations support non-standard customization, widely applied to global laboratories, pharmaceutical clean workshops and electronic dust-free manufacturing projects.

Equipped with primary filter + H14 HEPA double-stage filtration system, the filtration efficiency for 0.3μm particles reaches 99.99%. It comes with intelligent safety configurations including UV sterilization interlock, variable frequency fan speed regulation, filter differential pressure alarm and lifting glass observation window, together with silent centrifugal fan to ensure comfortable long-hour experimental operation.

Key Advantages

1. Dual Stage Progressive Laminar Filtration
G4 primary filter intercepts large dust particles, H14 high efficiency filter removes tiny microbes, uniform stable laminar airflow maintains constant Class 100 cleanliness inside operation zone.

2. Arc Stainless Steel Worktop, Easy Sanitization
Integrated arc stainless steel work surface without dust dead corners, can be repeatedly wiped with alcohol and hydrogen peroxide, fully compliant with GMP hygiene standards.

3. Complete Intelligent Safety Protection
UV lamp interlock avoids ultraviolet radiation injury; variable frequency fan adjusts airflow speed as needed; differential pressure sensor reminds users to replace filter timely; liftable glass window isolates cross contamination.

4. Low Noise Stable Continuous Operation
High quality silent centrifugal fan effectively reduces operating noise, suitable for long-hour uninterrupted laboratory testing and production work.

5. Multiple Models For Different Production Needs
Vertical flow model for cell culture and microbial experiments; horizontal flow model for chip and optical parts assembly; double-side bench supports synchronous dual-side batch testing.

6. Flexible Customization For Special Projects
316L anti-corrosion worktop available for chemical corrosive environments, all external dimensions and functional modules can be adjusted according to customer site layout.

Product Classification

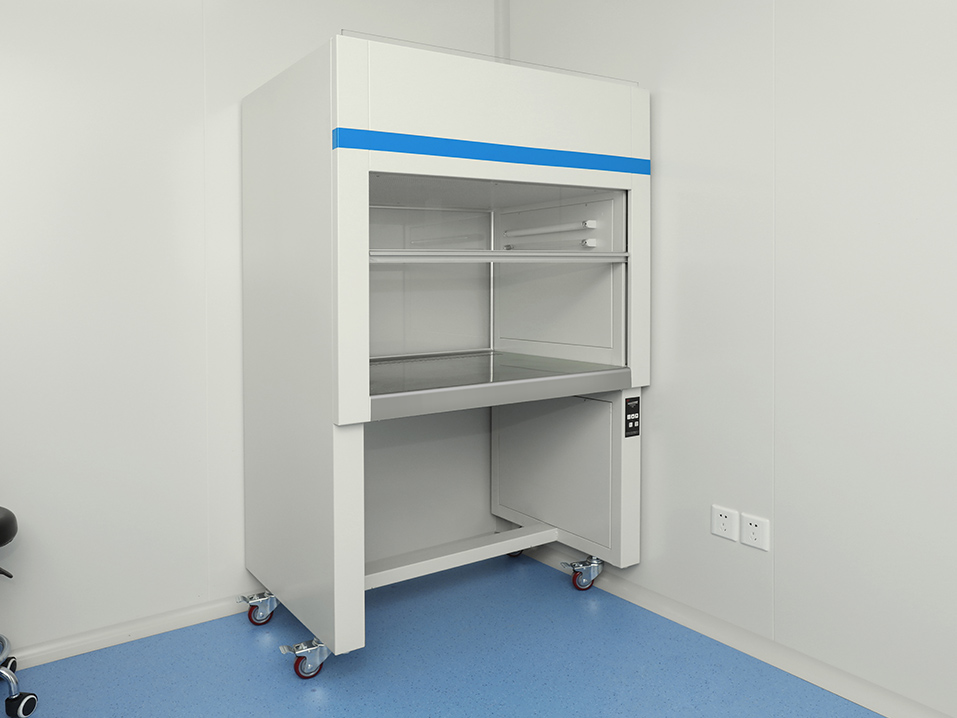

1. Vertical Laminar Flow Clean Bench
Air flows vertically from top to bottom, specially used for cell culture, microbial experiments and pharmaceutical sample preparation.

2. Horizontal Laminar Flow Clean Bench
Horizontal cross air supply, ideal for chip, precision electronic component and optical element assembly.

3. Single / Double Person Single Side Bench
Cost-effective design for independent individual operation in conventional laboratories.

4. Double Person Double Side Bench
Dual-side synchronous working space, suitable for batch inspection and mass production stations.

Application Scenarios

Pharmaceutical GMP laboratory, drug sample preparation room
Biological laboratory, cell incubation & microbial testing room
Semiconductor chip, microelectronic precision assembly workshop
Optical lens, aerospace component ultra-clean production station
Food safety testing lab, cosmetic raw material inspection room
Medical device sterile testing & packaging area

Matching Supporting Products

Our laminar flow clean bench matches complete cleanroom purification system including clean wall panels, clean doors, FFU fan filter units, high efficiency air supply outlets and observation windows. We supply full cleanroom EPC turnkey service with scheme design, customized manufacturing, delivery and on-site installation guidance.
