Cleanroom Pass Through Box

Product Name:Cleanroom Pass Through Box

Main Material:Optional galvanized steel with powder coating / SUS304 stainless steel

Interlock Mode:Mechanical interlock / Electronic interlock, two doors cannot open simultaneously

Standard Configuration:Transparent observation window, built-in UV germicidal lamp

Optional Functional Modules:H14 laminar flow self-cleaning system, VHP full cabin sterilization module, differential pressure real-time monitoring

Control System:Intelligent touch control panel, real-time status display

Customizable Options:Inner cavity size, outer overall dimension, door thickness, surface color, additional sterilization functions

Application Scope:Pharmaceutical GMP clean workshop, biological laboratory, semiconductor electronic dust-free workshop, food purification factory, medical sterile testing room

Share to

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Talk to us now!

Description

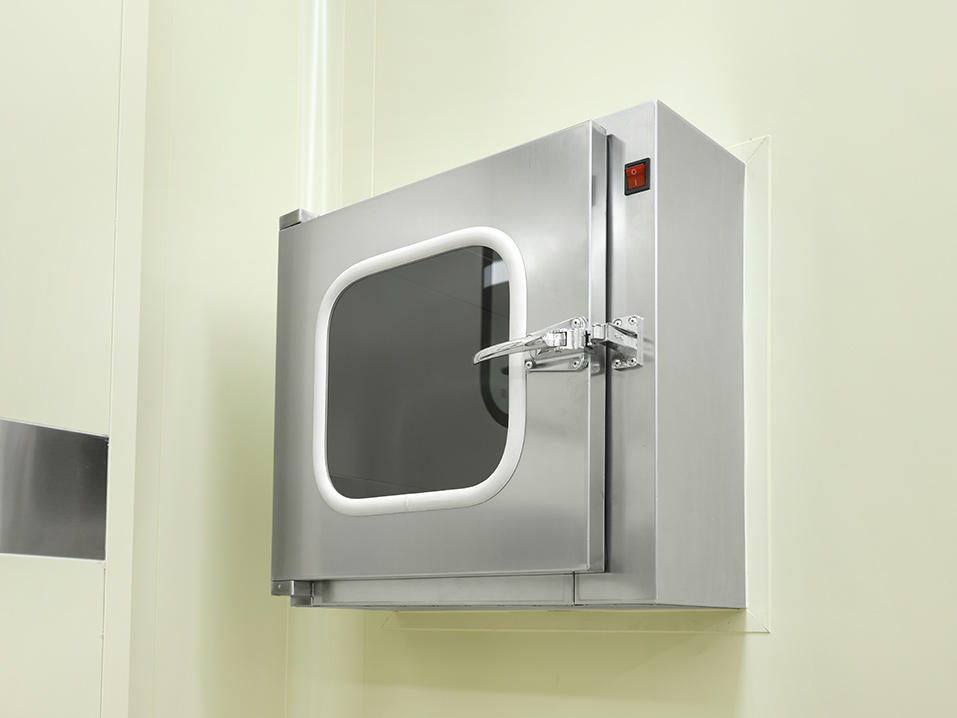

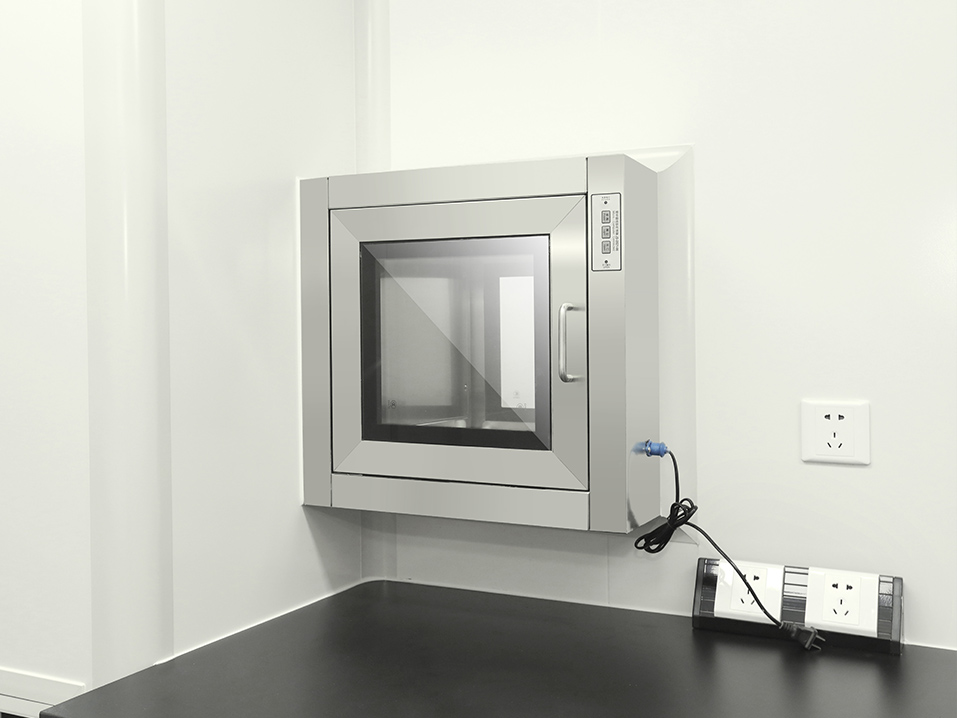

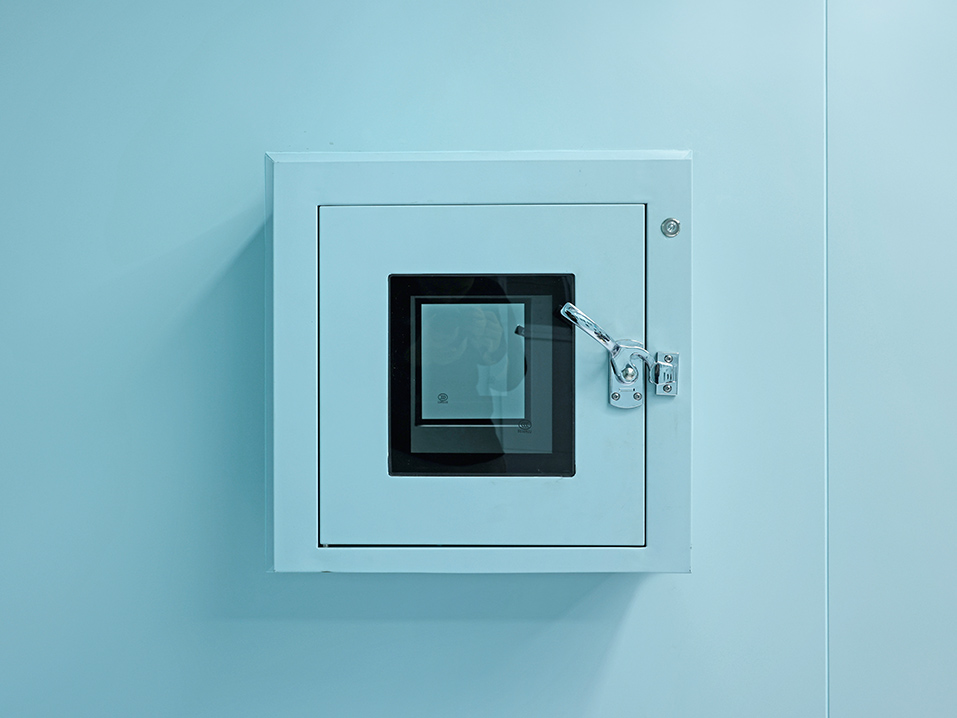

Cleanroom Pass Through Box

Cleanroom pass through box for material transfer between clean & non-clean zones, mechanical /electronic double interlock optional, seamless arc inner chamber, UV sterilization, laminar flow self-cleaning, VHP sterilization optional. Embedded & wall-mounted installation, stainless steel /coated steel available, custom size for pharmaceutical, lab, electronic clean projects.

Product Overview

Our cleanroom pass through box is used for material transfer between clean areas and non-clean areas, or different grade clean zones. The double door interlock design avoids cross contamination caused by air convection.

No personnel need to walk through, which reduces the opening times of cleanroom doors, stably maintains indoor cleanliness and brings convenient operation.

Two interlock types are available: mechanical interlock and electronic interlock, with multi-layer sealing structure for excellent air tightness. The inner chamber adopts seamless arc design without dust dead corners, easy for wiping and disinfection. Multiple optional functions include H14 laminar flow self-cleaning, UV germicidal lamp, full cabin VHP sterilization and differential pressure monitoring. It supports both embedded and wall-mounted installation modes, equipped with transparent observation window and intelligent control panel, all sizes can be customized according to project demands.

Key Advantages

1. Dual Interlock Protection, Prevent Air Cross Contamination
Mechanical and electronic interlock options are available, the two doors are completely locked to avoid simultaneous opening, effectively block air convection between clean and non-clean zones, stabilize indoor positive pressure environment.

2. Sanitary Seamless Arc Inner Chamber
Whole seamless arc inner cavity without gaps for dust and bacteria to accumulate, can be repeatedly wiped with alcohol and hydrogen peroxide, fully meet GMP sanitation management standards.

3. Rich Optional Functional Modules For Different Process Demands
Customers can add laminar flow self-cleaning, UV disinfection, VHP full cabin sterilization and differential pressure monitoring according to purification grade requirements, suitable for high sterile and high active material transfer projects.

4. Two Universal Installation Modes
Embedded installation for integrated clean wall panel splicing; external wall-mounted type for finished wall renovation projects, flexible construction without complicated wall modification.

5. Visible Observation Window & Intelligent Control Panel
Transparent viewing window allows staff to check internal materials without opening doors; intelligent panel displays sterilization timing, differential pressure and equipment running status in real time.

6. Full Size & Appearance Customization
All internal and external dimensions, door colors and functional combinations can be adjusted according to customer on-site layout, perfectly matching the overall style of cleanroom.

Application Scenarios

Pharmaceutical GMP sterile workshop material transfer passage
Biological safety laboratory, microbial testing lab sample transfer window
Semiconductor chip, precision electronic dust-free workshop parts transfer
Food & beverage purification production raw material delivery room
Hospital sterile testing room, medical device clean packaging area
Cosmetic constant temperature clean workshop sample transfer station

Matching Supporting Products

Our cleanroom pass through box can be perfectly matched with clean wall panels, cleanroom doors, air shower rooms, FFU fan filter units and high efficiency air supply outlets to form a complete closed purification circulation system. We provide full cleanroom EPC turnkey service including scheme design, customized production, delivery and on-site installation guidance.
